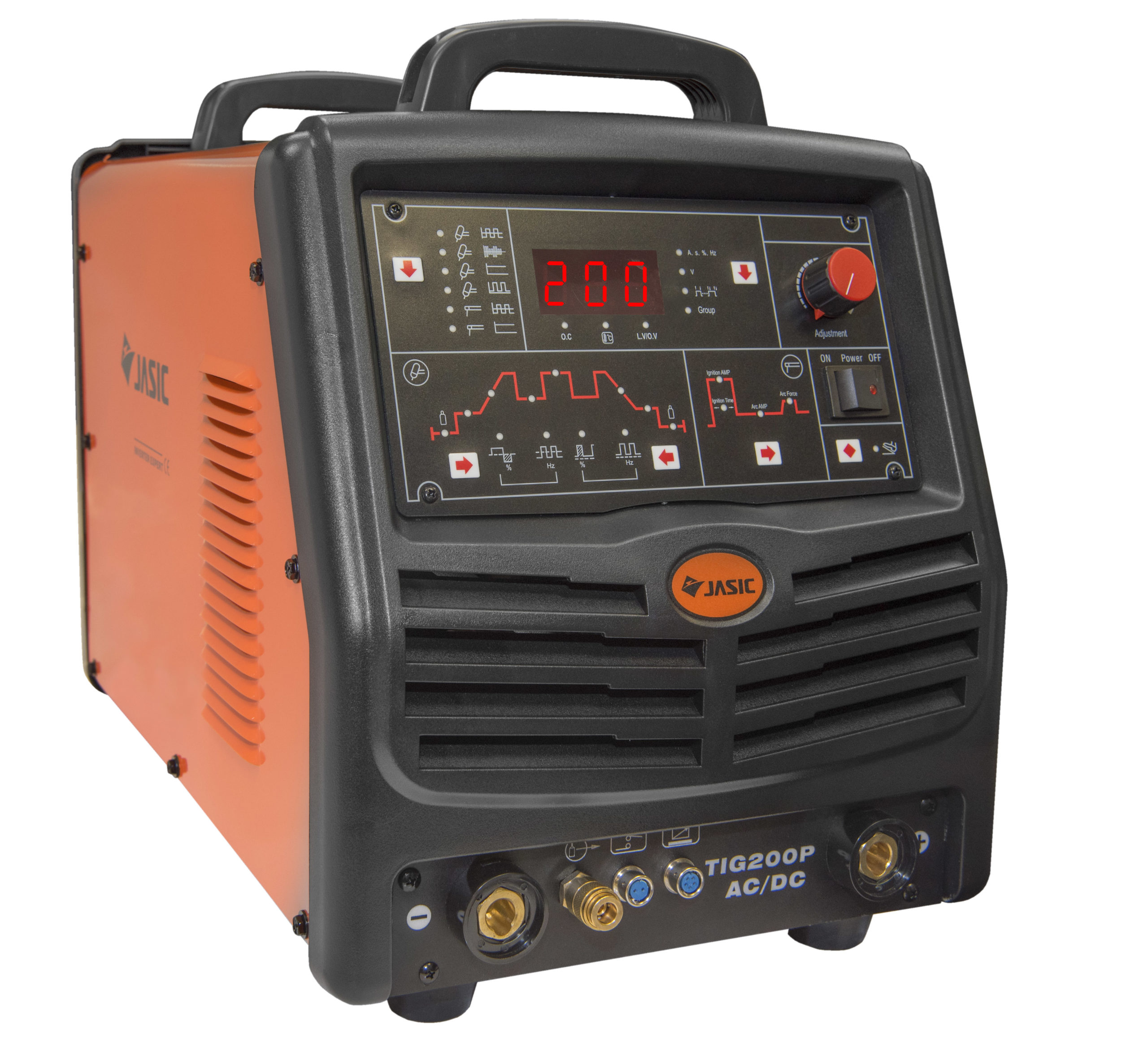

JASIC TIG 200 Pulse D (£1039.50 exc VAT)

£1,247.40

Categories: ,

Description

The JASIC TIG 200 Pulse AC/DC is a technologically advanced single phase inverter power source suitable for medium to large production work. The innovative and user-friendly digital panel allows full control of the welding parameters. The excellent technical characteristics of the 200 AC/DC make it
an ideal choice for professionally qualified TIG welders that require precise and reliable performance.

Key Features
• TIG Pulse AC/DC with digital control
• Program memory storage
• Peak current control, 2T/4T
• Pre-post flow time, up/down slope
• Pulse adjustment
• Pulse frequency, pulse duty, arc force, cleaning width
• Remote control interface
• AC function for aluminium and aluminium alloys
• DC TIG function for carbon steel,
copper and non-ferrous metals
• Smooth arc and stable welding performance

Technical Data
Input Voltage = AC 230V – 50/60 Hz
Ieff (A) = 20
Input Power (kVA) = 6.9
Current Range (A) = AC 20 – 200 DC 10 – 200
Duty Cycle @ 40°C = 200A @ 35%
No-Load Voltage (V) = 60
Protection/Insulation Class = IP21S/B

Additional information

Weight 27 kg
Dimensions 570 × 335 × 440 mm
