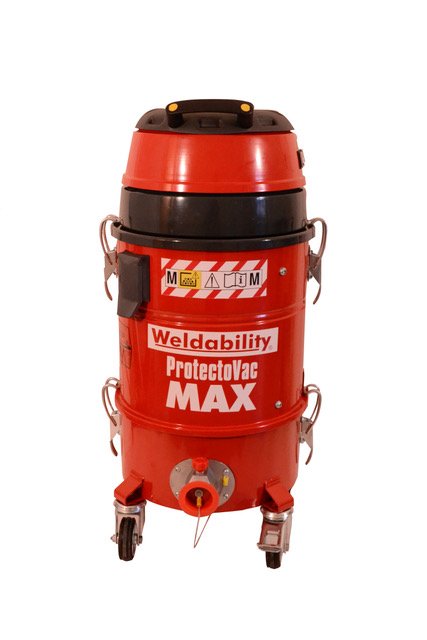

ProtectoVac MAX Extraction Unit (£1189.00 exc VAT)



The ProtectoVac MAX extraction unit is a highly portable unit that can be used in a variety of locations. It is an ideal unit that can be used for specific applications to support the extraction of fumes and dust directly at the source. Designed specifically to extract and filter metal particulate fumes that arise from welding processes, the ProtectoVac MAX is suitable for use in the workshop, demonstration training bay, garage and on-site. Main features include a ‘Dust Stop’ semi-automatic cleaning system that allows the operator to clean the filter with ease, simply by lifting the flap on the chamber. The unit also comes with a 15Ltr detachable dust collection chamber with handle. Other useful features include a 2.5m hose and nozzle with magnetic base, plus a metal pre-filter to stop any sparks. 110v or 230V Units are available, and all models include castors for easy manoeuvrability.

• Single phase by-pass motor
• 180m3/h maximum airflow
• 2500mmH20 maximum depression
• Cartridge filter
• Metal pre-filter to stop sparks
• Automatic start/stop
• Dust stop filter cleaning system 15Ltr
detachable dust collection chamber with handle
• Castor for easy manoeuvrability

Technical Specifications
Power (kW) =1
Power voltage (V) = 110
Max. air flow rate (m3/h) = 175
Noise level (dB A) = 75
Filter type = Cartridge M
Filter surface (cm2) = 5.600
Capacity (lt) = 15
Suction inlet (Ø) = 50
Max. vacuums rate (mm H2O) = 2.250

Additional information

Dimensions 50 × 54 × 83 mm
